Air Duct Steel Flange Welding Machine 4-CHT-1500X5000 Angle steel flange four-shot automatic welding machine

Angle steel flange four-shot automatic welding machine

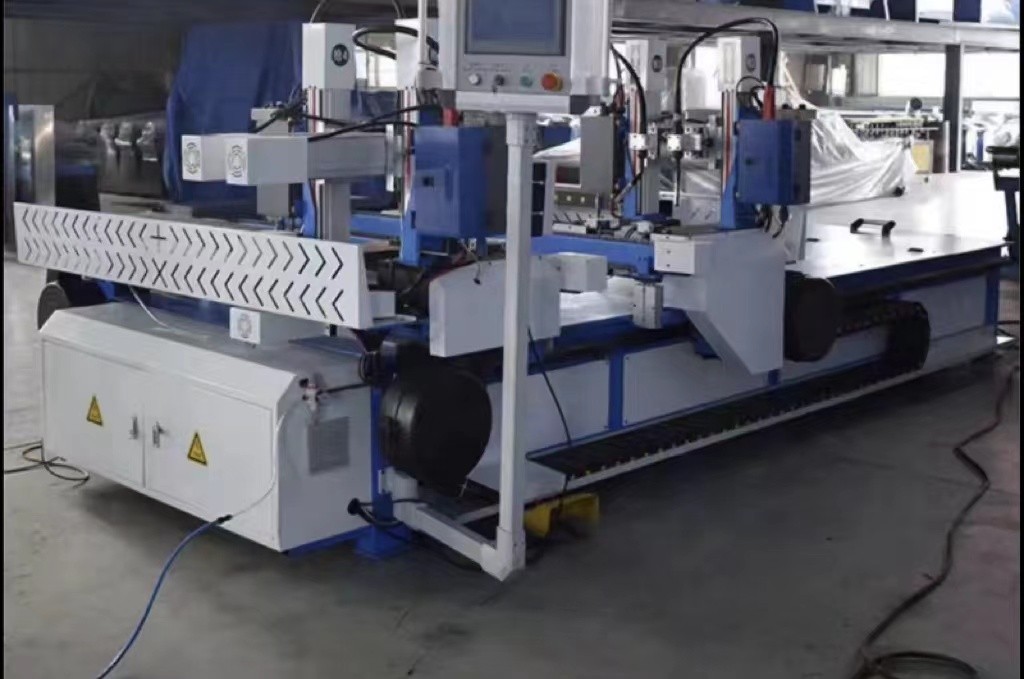

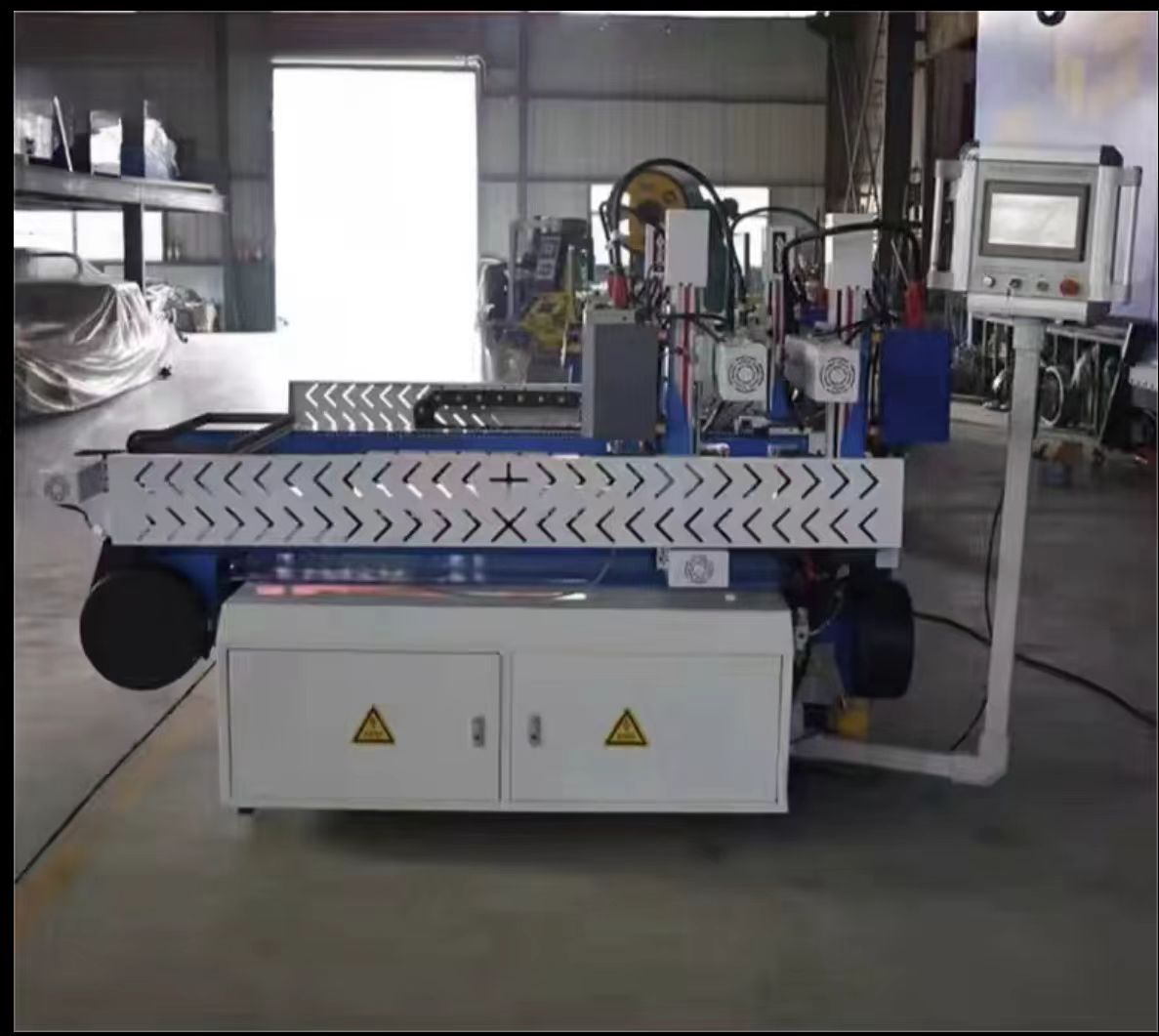

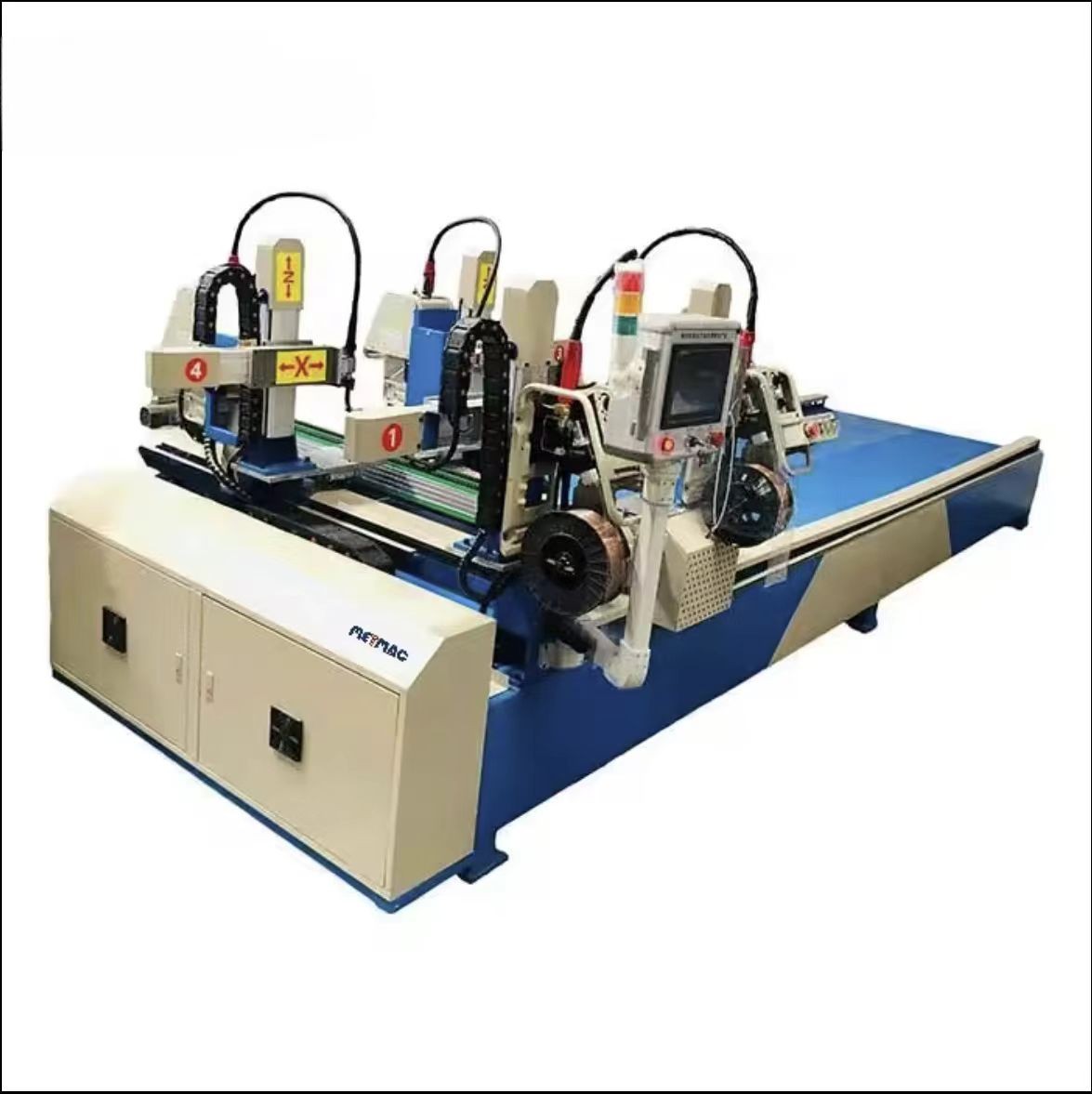

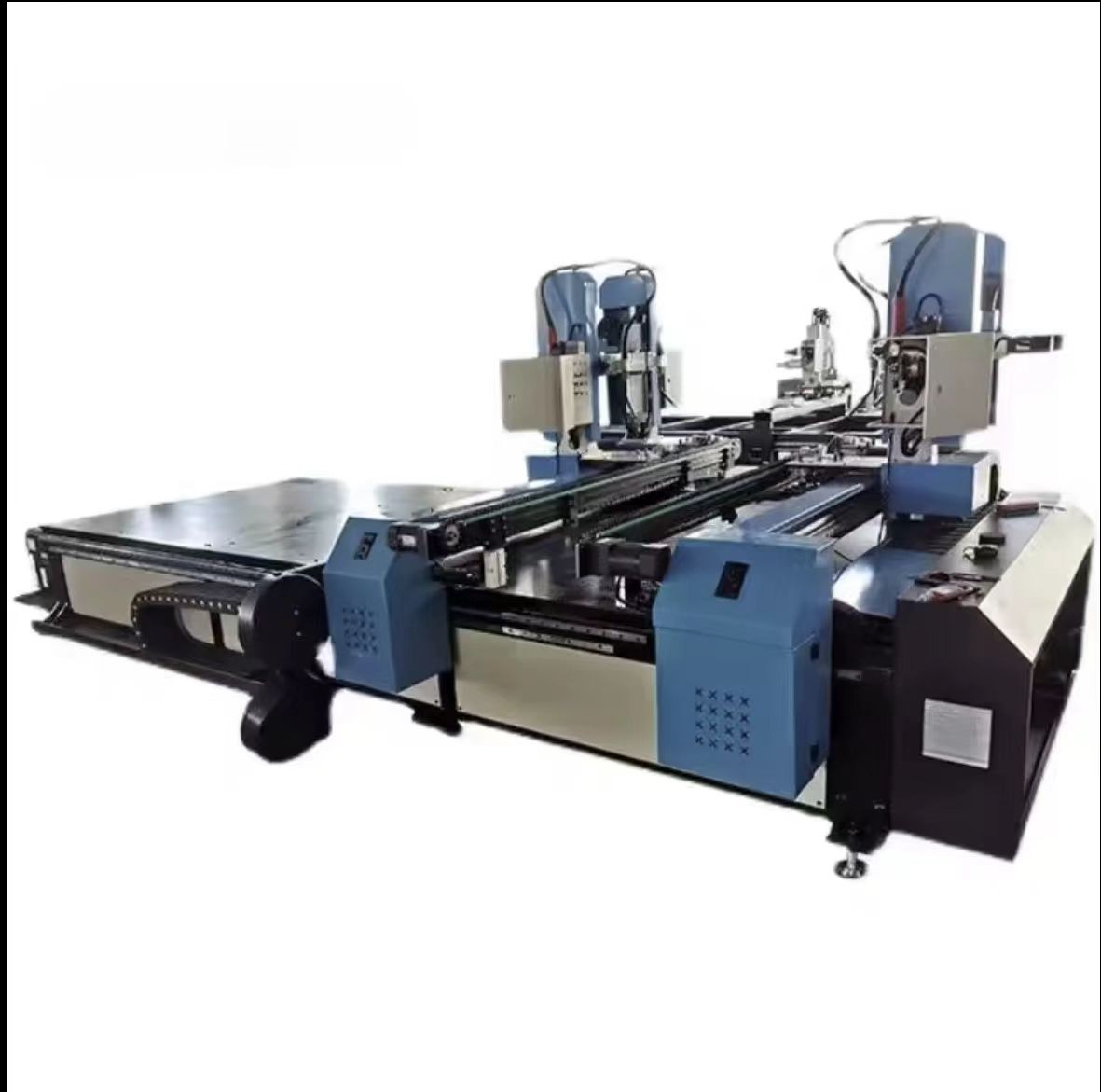

Duct steel flange welding machine composes with welding table, TIG welding and electronical control system.

Four clamper fix the four side of angle flange by pneumatic pistons, then four TIG welder do the welding at four edges on steel angle flanges through the mechanical arms moving on X and Z axis. After welding finished, the welding table will feed the welded product out of working zone. The size square and rectangular steel angle flanges can be adjusted from minimum 200x200mm to maximum 5000x1500mm.
