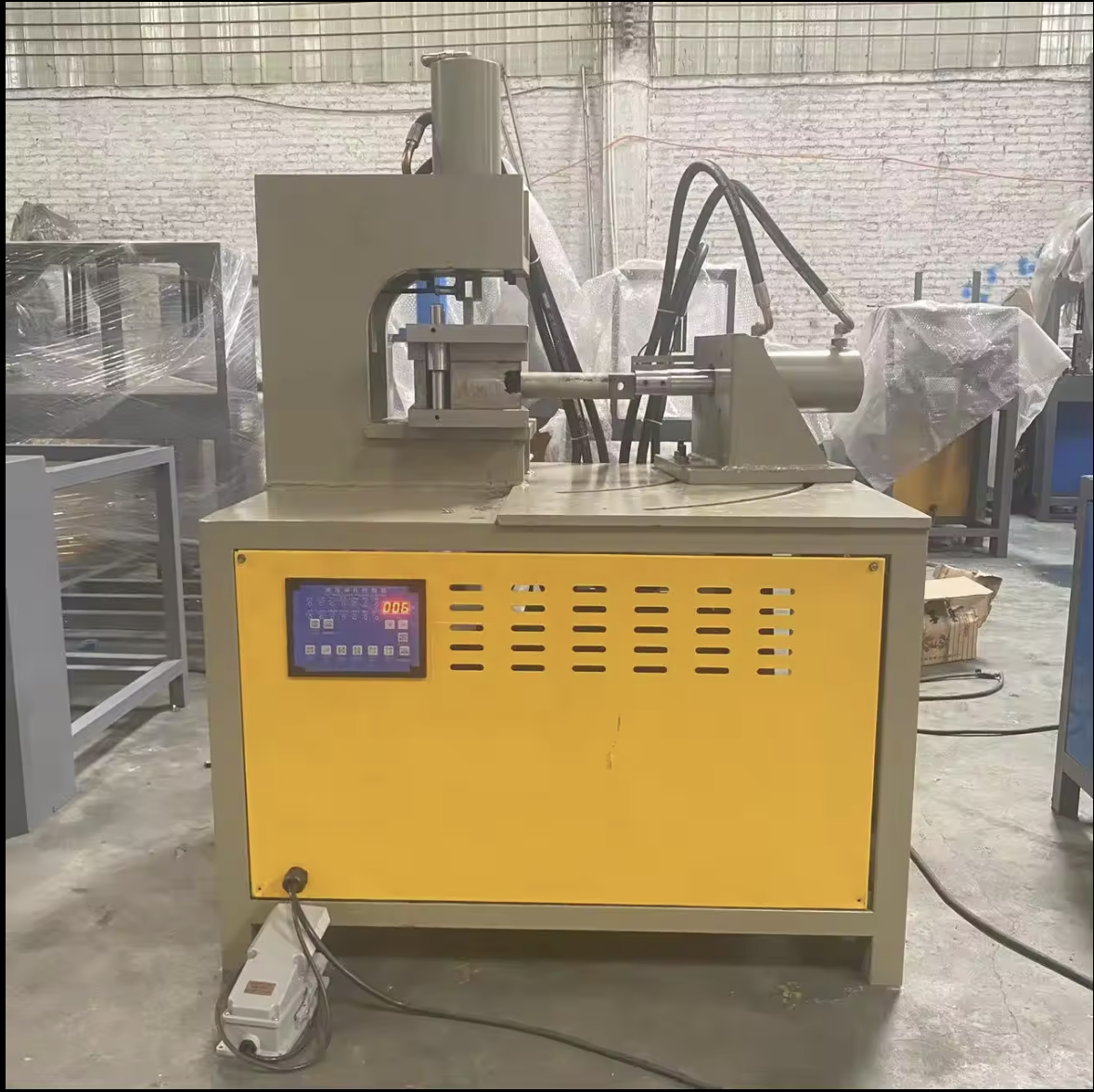

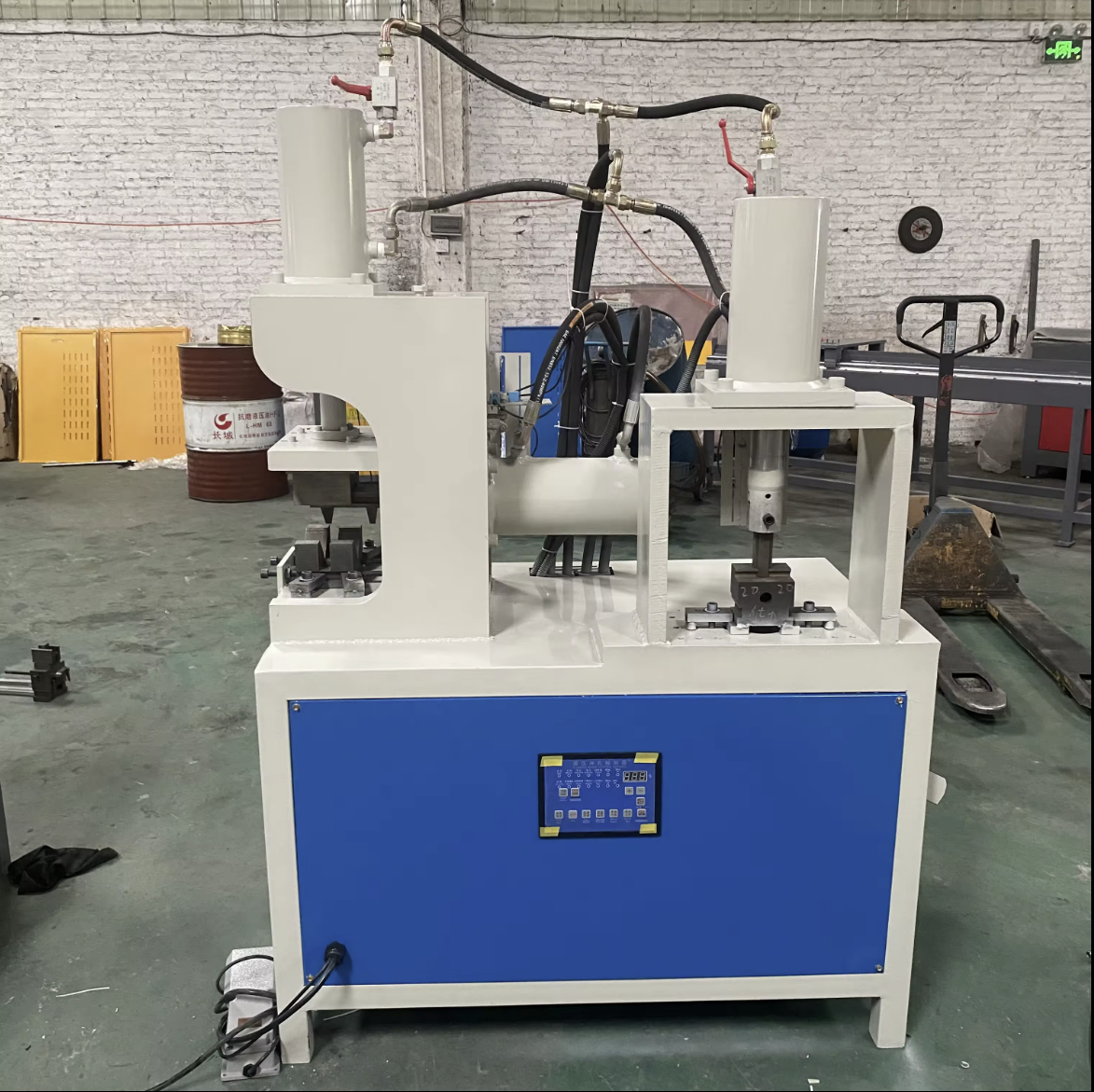

Single head hydraulic 90 degree angle stainless steel pipe cutting machine iron square tube notching cutting machine for sale

The mechanical part includes a longitudinal rail, a horizontal rail, a longitudinal transmission box and a horizontal transmission box. Each part together constitutes a structure that can realize two-dimensional movement in the X direction (lateral) and Y direction (longitudinal), so that it can be pressed under the control of a computer. The given linear velocity walks out a trajectory of arbitrary shape.
The gas path includes oxygen and acetylene gas pipes, solenoid valves, etc.
The electrical control part is concentrated in the electrical control cabinet, which mainly includes the control circuit board, display, X and Y servo motor driver, power supply, etc.
Its external wiring mainly includes: AC220V power input, drive output to X and Y servo motors, and connection to each solenoid valve.
Control output, ignition control output, plasma ignition control output, etc. These inputs and outputs are all connected by aviation sockets in the electrical control cabinet.
