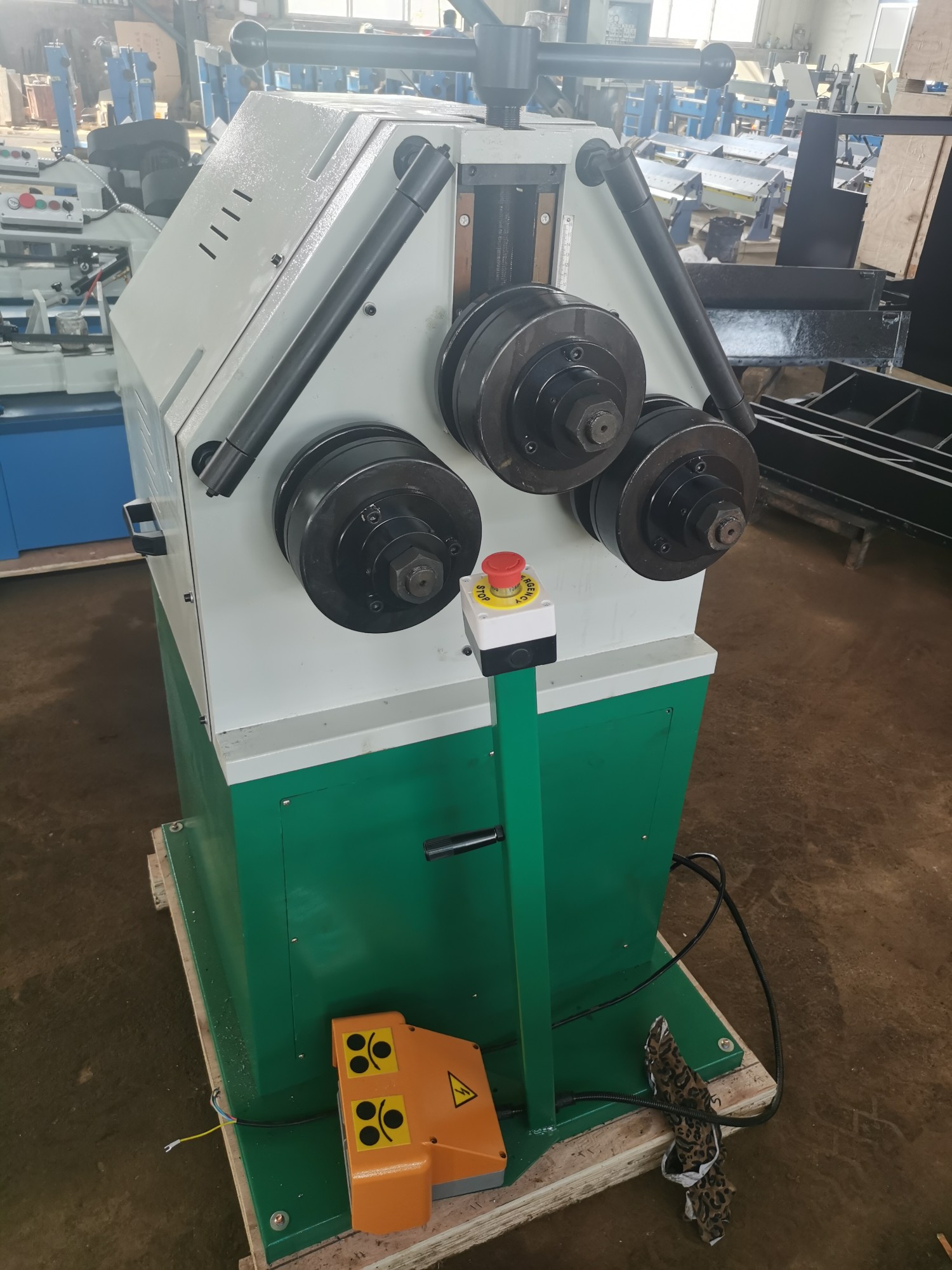

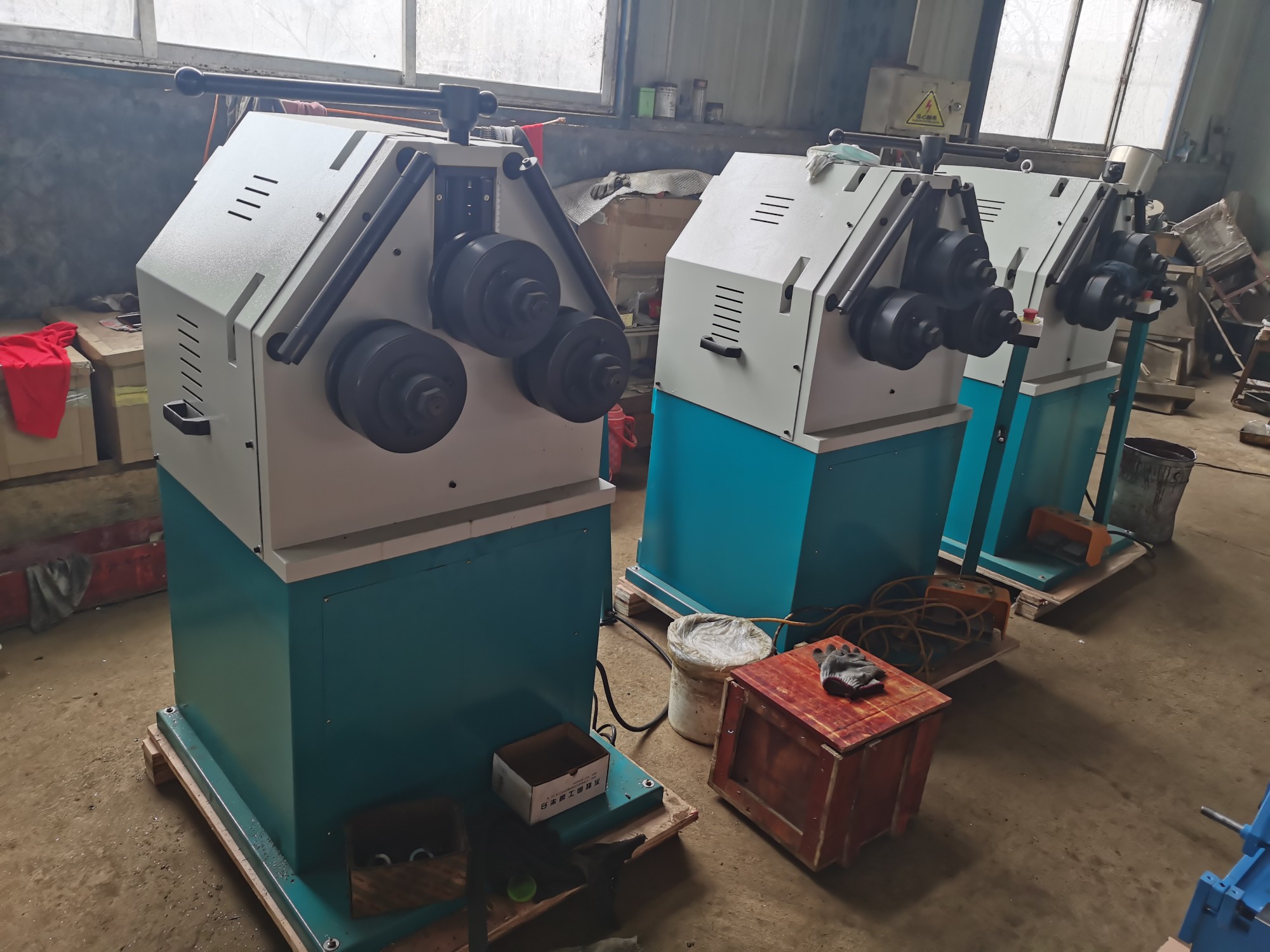

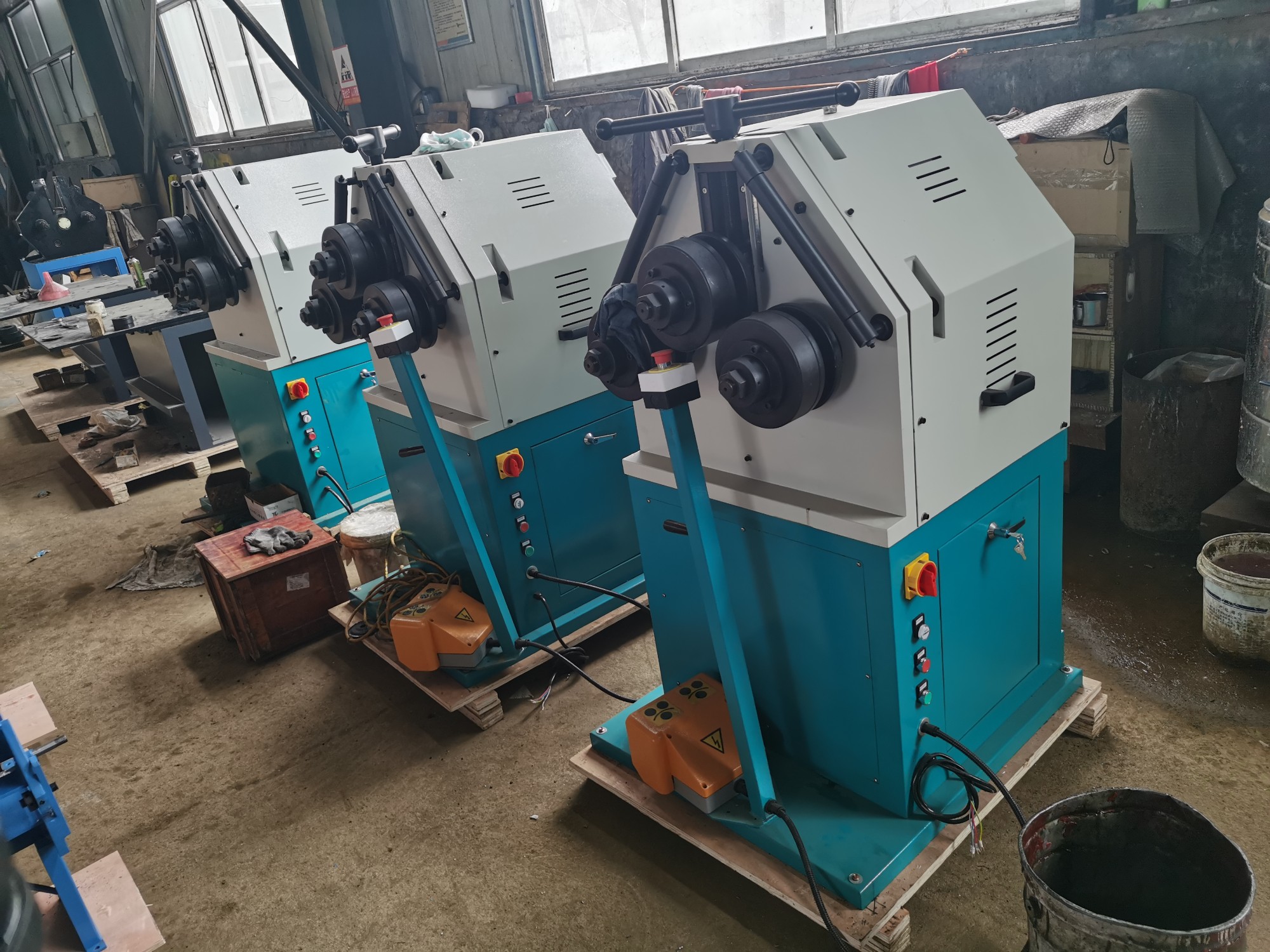

RBM50HV round Bending Machine

Features:

1. Electric control

2. Vertical operation

3. One set standard rollers delivery with machine

 Specification:

Model	RBM50
Dia. Of roller	￠50 mm
Power	2.2kw/3HP
Spindle speed	13r/min
Packing Size	100x82x155cm
N.W./G.W.	450/582KGS
Capacity	Size(mm)	Min Dia.(mm)
	60x10 40x10	500 650
	100x15 60x10	920 1150
	35x35 20x20	600 780
	60x7 50x5	750 700
	60x7 50x5	750 700
	80x45x6 65x40x5	600 550
	80x45x6 65x40x5	650 550
	60x5 50x5	500 500
	60x5 50x5	700 700
	￠35 ￠30	600 650
	60x60x3 40x40x3	600 500
	70x50x3	1200
	50x40x3	800

Standard accessories:

All the above processing capacities can be finished by one set of standard combination roller

Optional accessories:

1. Special roller:

Model	RBM40HV
Profile	Size	Min Dia.(mm)
	30x2 35x2 40x2 45x2 50x2 55x2 60x2 65x2 70x2	700

We can design the rollers for you as per your special requirements. And we can make the rollers in various materials such as nylon
