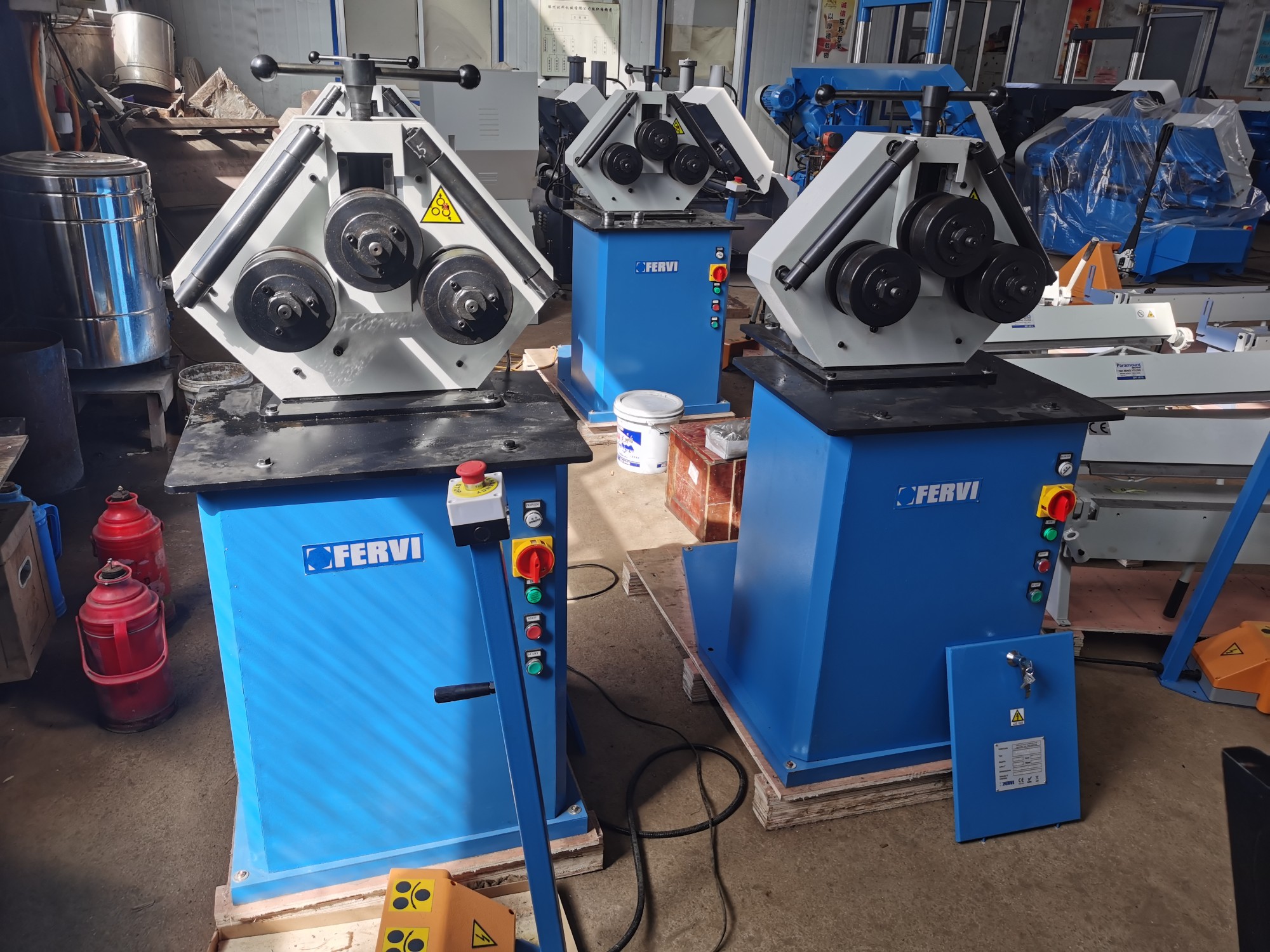

RBM30HV Round Bending Machine

* Horizontal and vertical operation
* With standard foot pedal
* The Round bending machine features an electric three-roller-wheel structure.
* It has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed work piece.
* It can conduct round bending processing for plates, T-shaped materials and so on.
* The round bending machine has a standard roller wheel, of which the front two types of roller wheel can be used both vertically and horizontally.
* The reversible pedal switch facilitates the operation.

Features:

1. Horizontal and vertical operation

2. With standard foot pedal

1. The Round bending machine features an electric three-roller-wheel structure.

2. It has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed work piece.

3. It can conduct round bending processing for plates, T-shaped materials and so on.

4. The round bending machine has a standard roller wheel, of which the front two types of roller wheel can be used both vertically and horizontally.

5.The reversible pedal switch facilitates the operation.

Specification:

Model	RBM30HV
Dia. Of roller	30mm
Power	0.75kw/1HP
Spindle speed	9r/min
Packing size	120x75x121cm
N.W./G.W.	244/282kgs
Capacity	Size	Min dia.(mm)	Article No.
	40x40x3	1000	One set standard roller
	50x15	350
	50x30x3	1200

Standard accessories:

1.Foot Pedal

2.One set roller

Optional accessories:

Special roller:

￠15 ￠20 ￠25 ￠30	600	HV30-15-4
40X40X2 40X40X3 40X40X4 X40X40X5	400	HV30-15-5
40X40X2 40X40X3 40X40X4 40X40X5	400	HV30-15-6
50X50X2 50X50X3 50X50X4 50X50X5	400	HV30-15-7
50X25X2 50X25X3 50X25X4 50X25X5	300	HV30-15-8
50X25X2 50X25X3 50X25X4 50X25X5	400	HV30-15-9
50X25X2 50X25X3 50X25X4 50X25X5	300	HV30-15-10
￠35X2 ￠40X2 ￠45X2￠50X2 ￠55X2 ￠60 X2	1000	HV30-15-11
