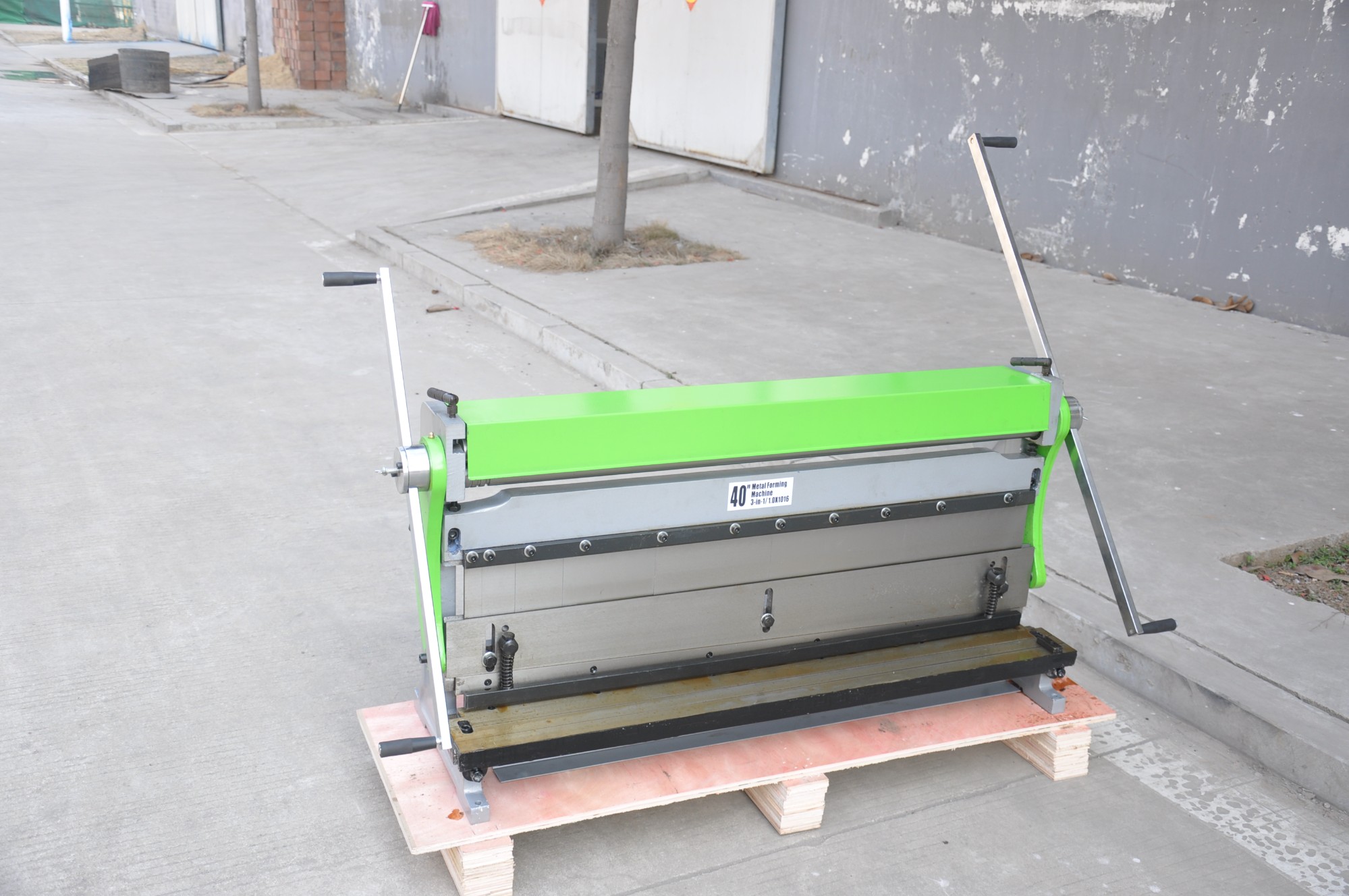

3-IN-1/1016 Combine Machine

* Removable male dies with female dies

* Back gauge standard equipment

* With two position handles

* Shearing mild steel or equipment

* Press brake-bends box and pan works

* Sectional fingers allow box and pan works

* Slip roll provided with forming grooves

* Folding with max. Angle of 90°

* Heavy Cast Iron Frame

* Slip rolls has hardened rolls with three wire grooves for small round stock

* The metal shear can cut at full capacity across the entire width of the machine.

1. Removable male dies with female dies

2. Back gauge standard equipment

3. With two position handles

4. Shearing mild steel or equipment

5. Press brake-bends box and pan works

6. Sectional fingers allow box and pan works

7. Slip roll provided with forming grooves

8. Folding with max. Angle of 90°

9. Heavy Cast Iron Frame

10. Slip rolls has hardened rolls with three wire grooves for small round stock

11. The metal shear can cut at full capacity across the entire width of the machine.

Specification:

Model	3-IN-1/1016	3-IN-1/1067	3-IN-1/1320
Bead width	1016 mm	1067 mm	1320 mm
Max. shearing thickness	1.0 mm	1.0 mm	1.0 mm
Max. bending thickness	1.0 mm	1.0 mm	1.0 mm
Max. bending angle	90°	90°	90°
Max. rolling thickness	1.0 cm	1.0 cm	1.0 cm
Min. rolling dia.	40 mm	42 mm	50 mm
Packing size	135x45x72 cm	139x54x78 cm	168x54x78 cm
N.W. / G.W.	195/208 kg	276/297 kg	349/388 kg
