CNC Tube Bending Machine

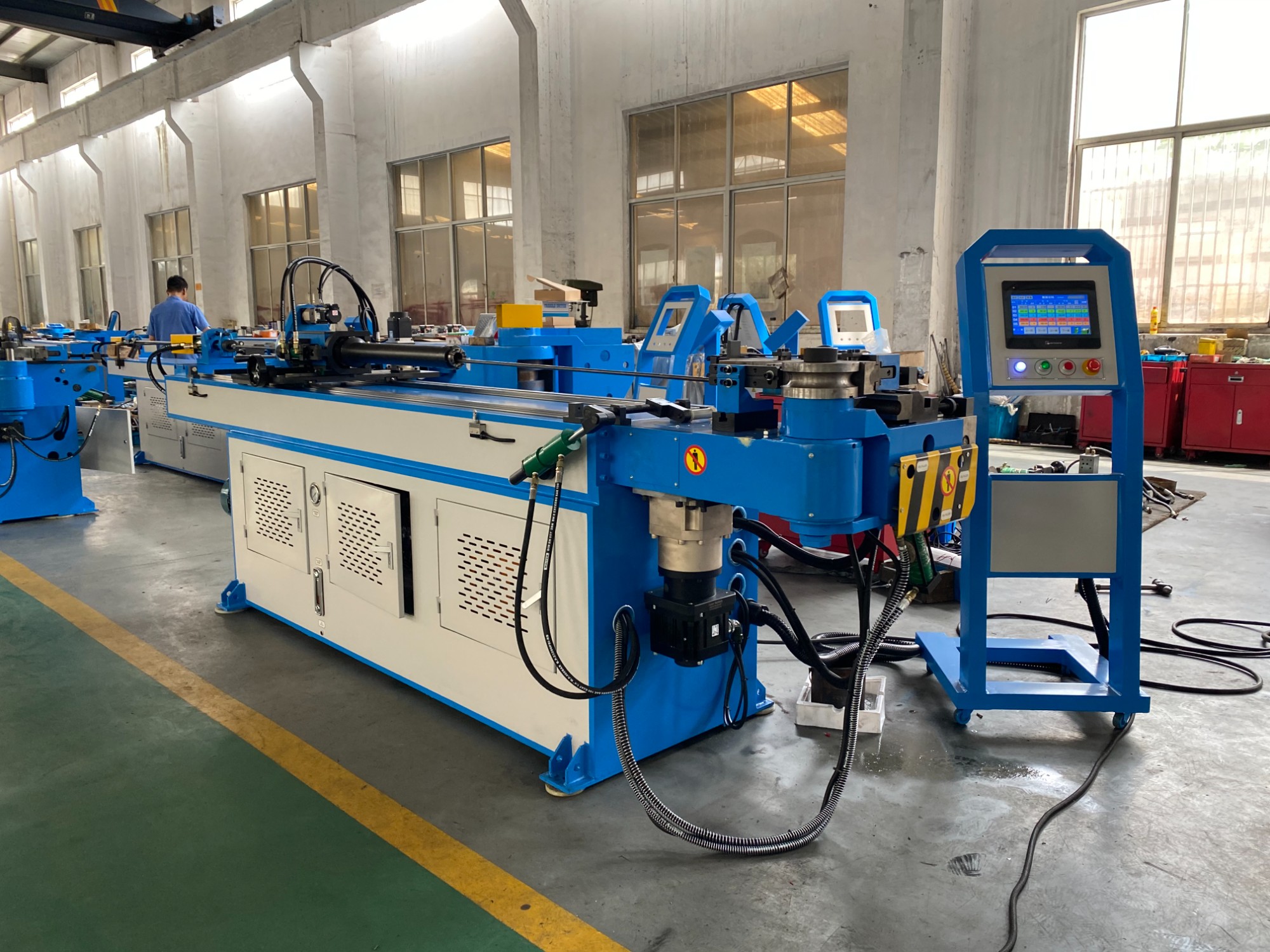

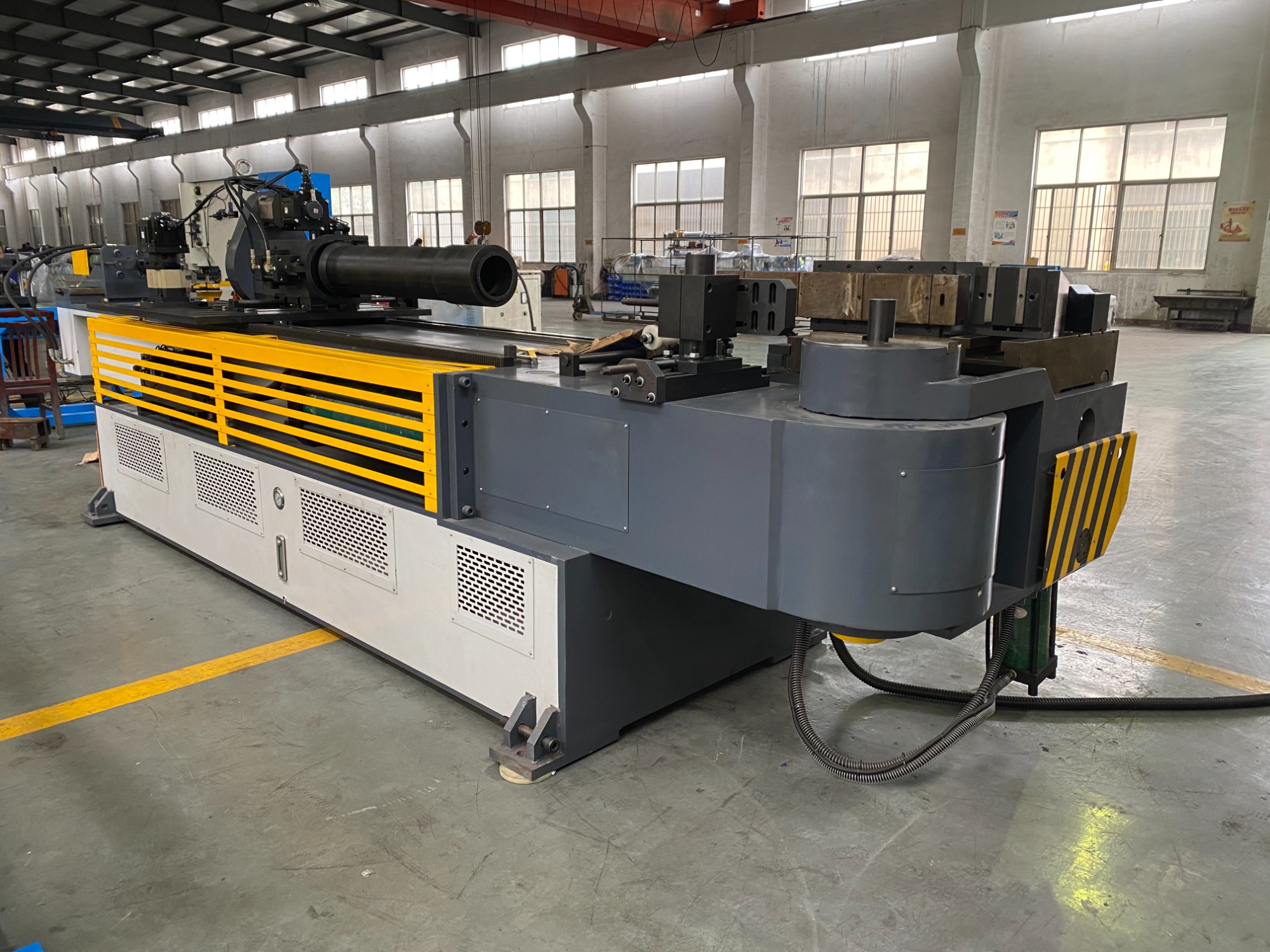

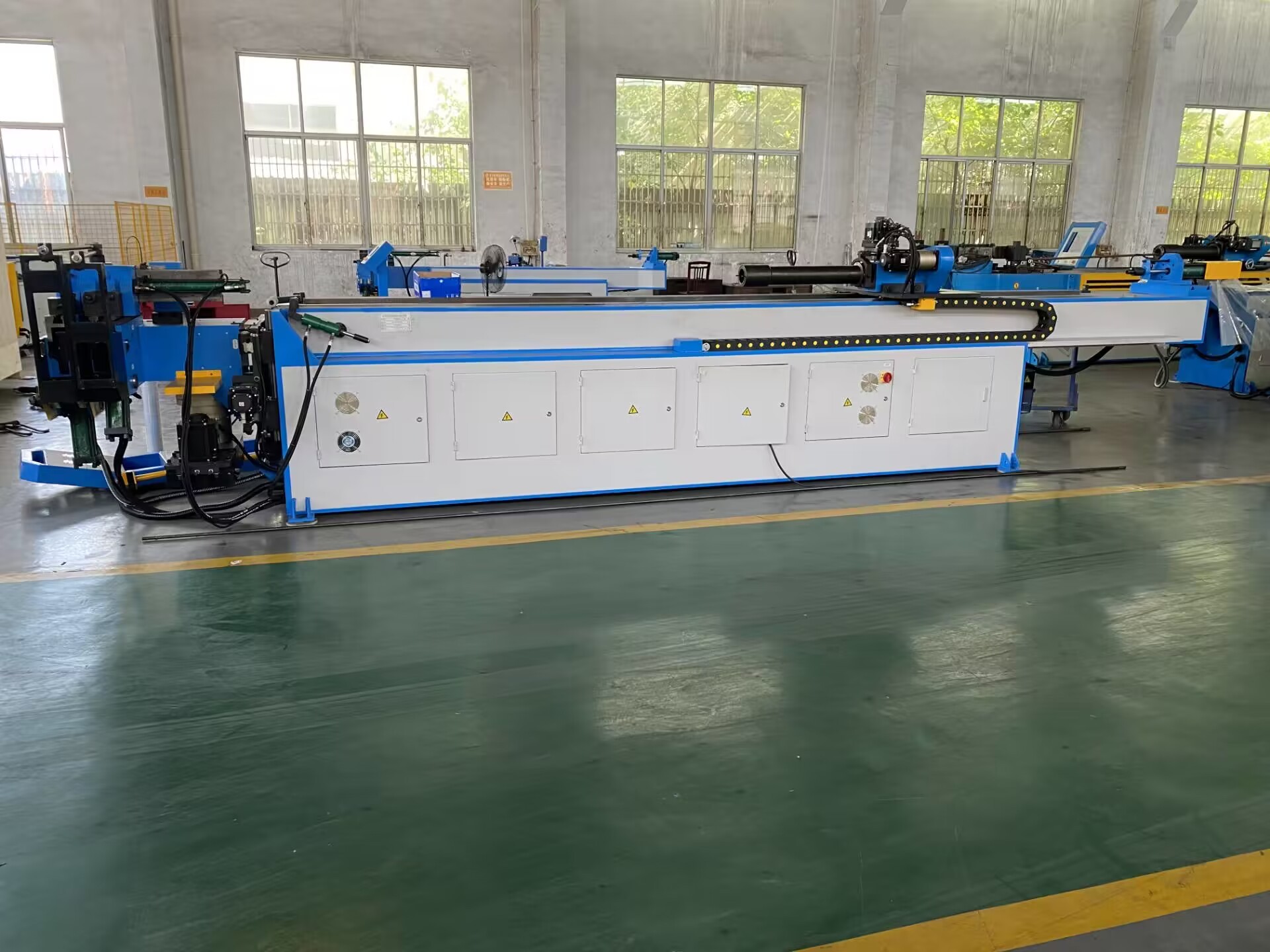

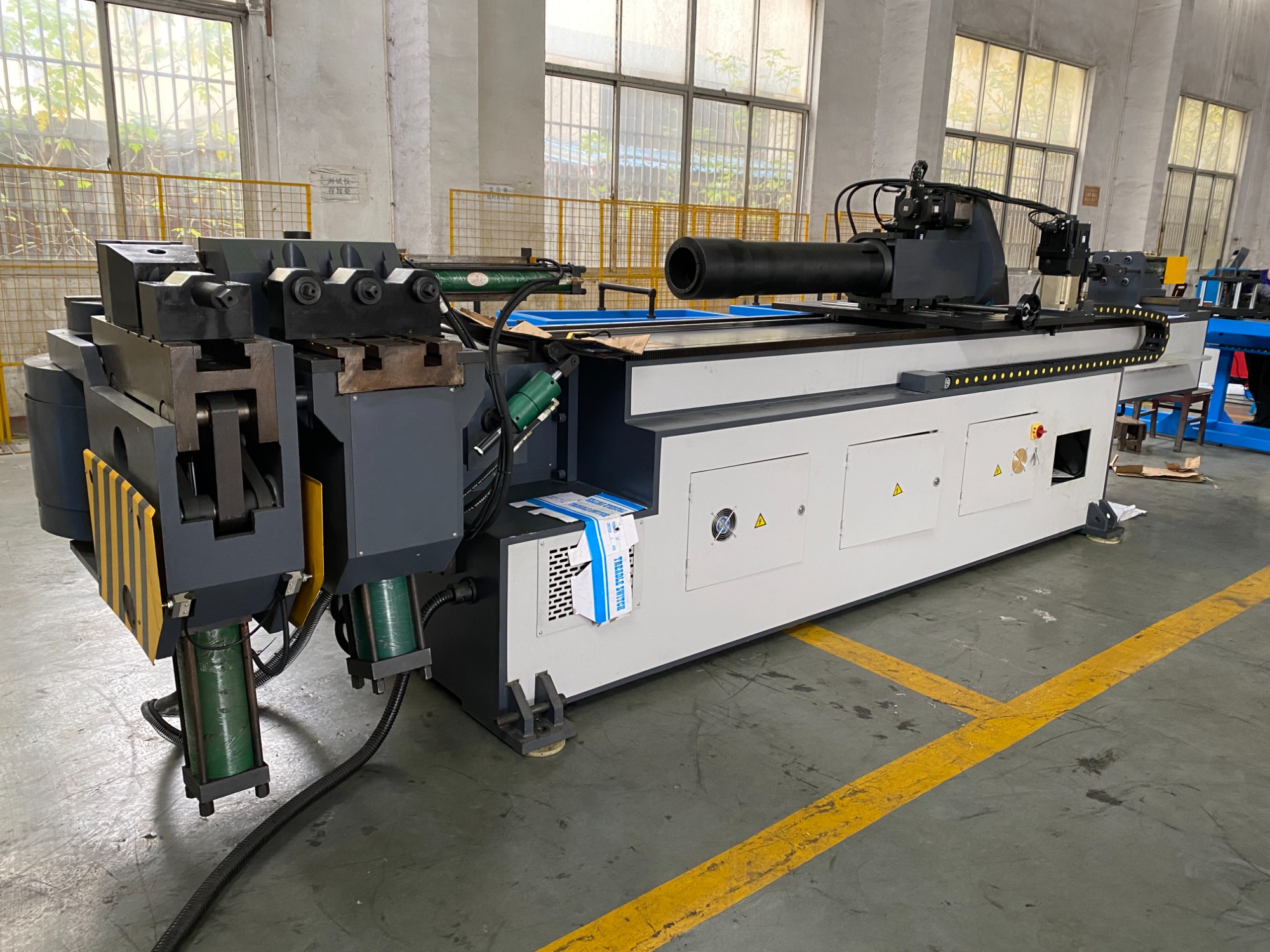

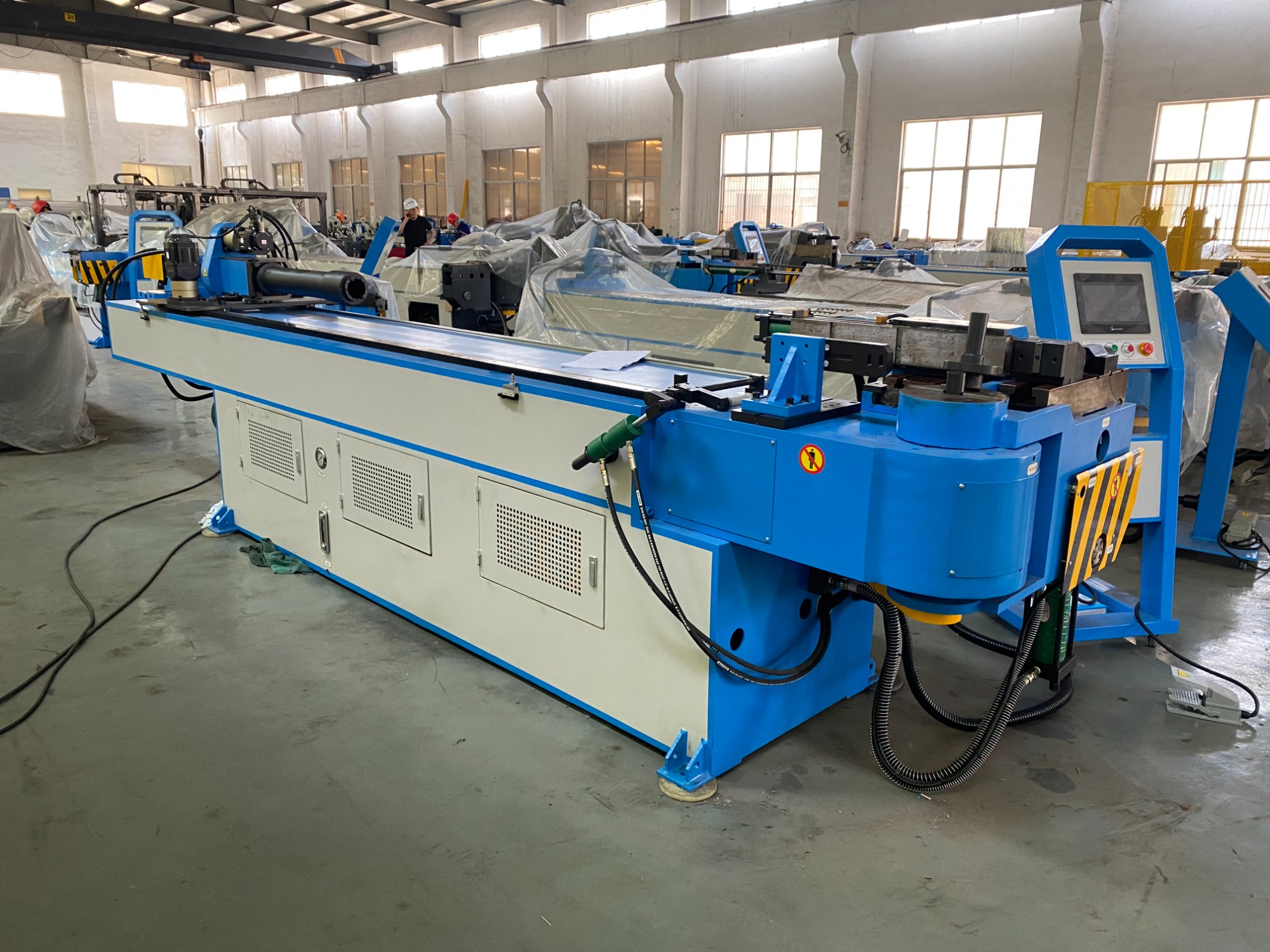

CNC Single-Head Bending Machine
Model GM-SB 18/28/38/42/50/63/76/89 CNC-2A-1S Series:
Characteristics of Pipe Bending Machine:
Full-Auto pipe bending machine adopts advanced industrial computer controller or color
touch screen.
It can easily produce precision bending parts which you need. It will provide you modernizational
efficiency factory with the most advanced and complete bending technology by its most reliable
controlling function. Our machine will meet your needs with best quality, most accuracy,highest
speed,most durability and safe as well as a whole set of service.

Characteristics if CNC Series (Economic Type) Single-Head Bending Machine:

(1) Y(feeding material), B(rotating), C(bending)

(2) Y axis feeding is servomotor driven, B axis rotating is servomotor driven, C axis bending is
proportion oil cylinder driven.

(3) High Speed and precision. It is suitable for complicated small and large tube procession,such
as automobile industry,refrigeration industry etc.

Main Technical Parameter	Unit	18CNC	28CNC	38CNC	42CNC	50CNC	63CNC	76CNC	89CNC
Max. Bending Capacity	mm	￠18×2	￠28×2	￠38×2	￠42×2.5	￠50×2	￠63×3	￠76×4	￠89×6
Bending Radius Region	mm	20-150	20-180	20-200	20-250	20-250	25-350	30-350	40-400
Bending Angle Region	Degree	0-190	0-190	0-190	0-190	0-190	0-190	0-190	0-190
Effective Length Over Mandrel	mm	1250	2200	2400	2400	2400	2600	2600	3000
Oil Pressure System Motor	kw	2.2	2.2	4	4	5.5	7.5	7.5	11
Max. Pressure	kg/cm	160	160	160	160	160	160	160	160
Machine Dimension	mm	3000×750×1300	3800×650×1300	4000×700×1300	4000×700×1300	4000×800×1300	5000×1200×1350	5000×1200×1350	5500×1350×1200
Machine Weight	kg	1300	1500	2000	2200	2200	3000	3500	4800
