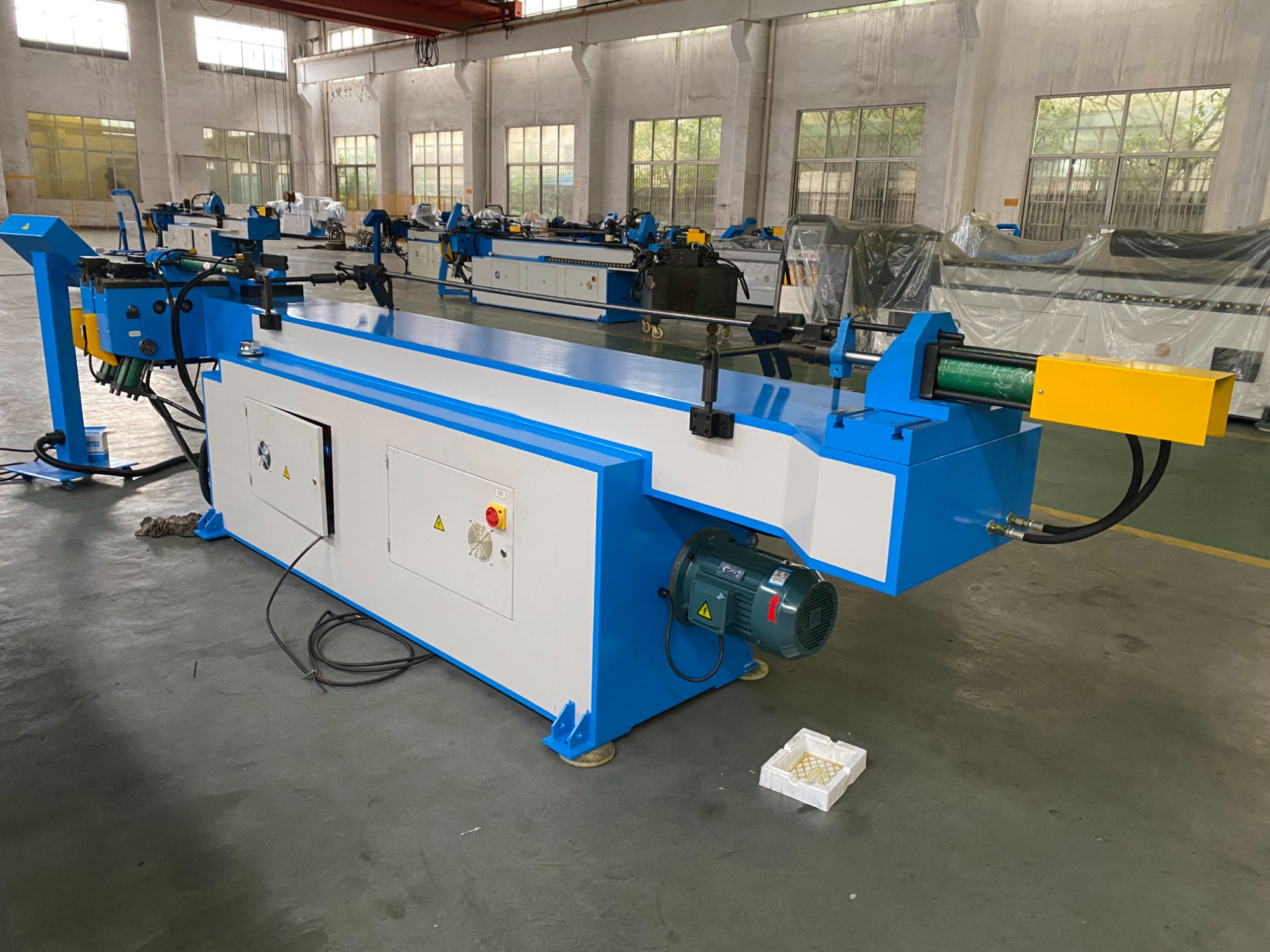

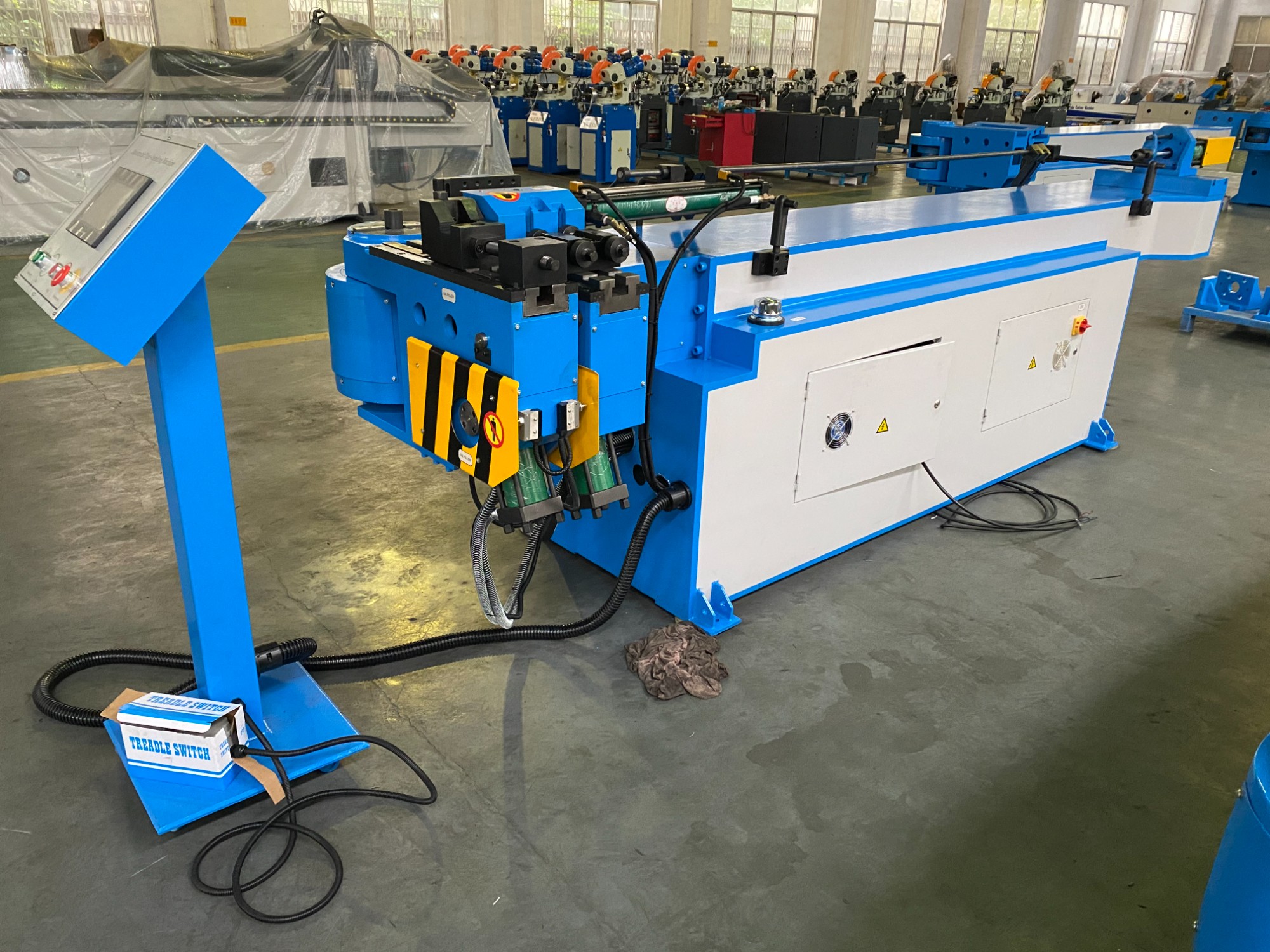

Semi-automatic Tube Bending Machine

Model GM-SB 18/28/38/42/50/63/76/89 NCB Series:
Characteristics of Pipe Bending Machine:It adopts imported special controlling system. The
action of the machine is stable. It has mode of manual and auto, the operator can change the
Programs.This series is suitable for two-dimensional bending at high speed and in mass
production.

Main Technical Parameter	Unit	18NCB	28NCB	38NCB	42NCB
Max. Bending Capacity	mm	￠18×2	￠28×2	￠38×2	￠42×3
Bending Radius Region	mm	20-150	20-180	20-200	20-250
Bending Angle Region	Degree	0-190	0-190	0-190	0-190
Effective Length Over Mandrel	mm	2000	2000	2000	2200
Oil Pressure System Motor	kw	2.2	2.2	4	5.5
Max. Pressure	kg/cm	160	160	160	160
Machine Dimension	mm	2300×550×1300	2500×650×1300	2500×700×1300	3000×800×1300
Machine Weight	kg	1000	1300	1500	1800

Main Technical Parameter	Unit	50NCB	63NCB	76NCB	89NCB
Max. Bending Capacity	mm	￠50×2	￠63×4	￠76×5	￠89×10
Bending Radius Region	mm	20-250	25-350	30-350	40-400
Bending Angle Region	Degree	0-190	0-190	0-190	0-190
Effective Length Over Mandrel	mm	2200	2500	3200	4000
Oil Pressure System Motor	kw	5.5	7.5	7.5	11
Max. Pressure	kg/cm	160	160	160	160
Machine Dimension	mm	3000×800×1300	4200×1200×1350	5000×1200×1350	5300×1350×1200
Machine Weight	kg	1800	2500	3000	4000
