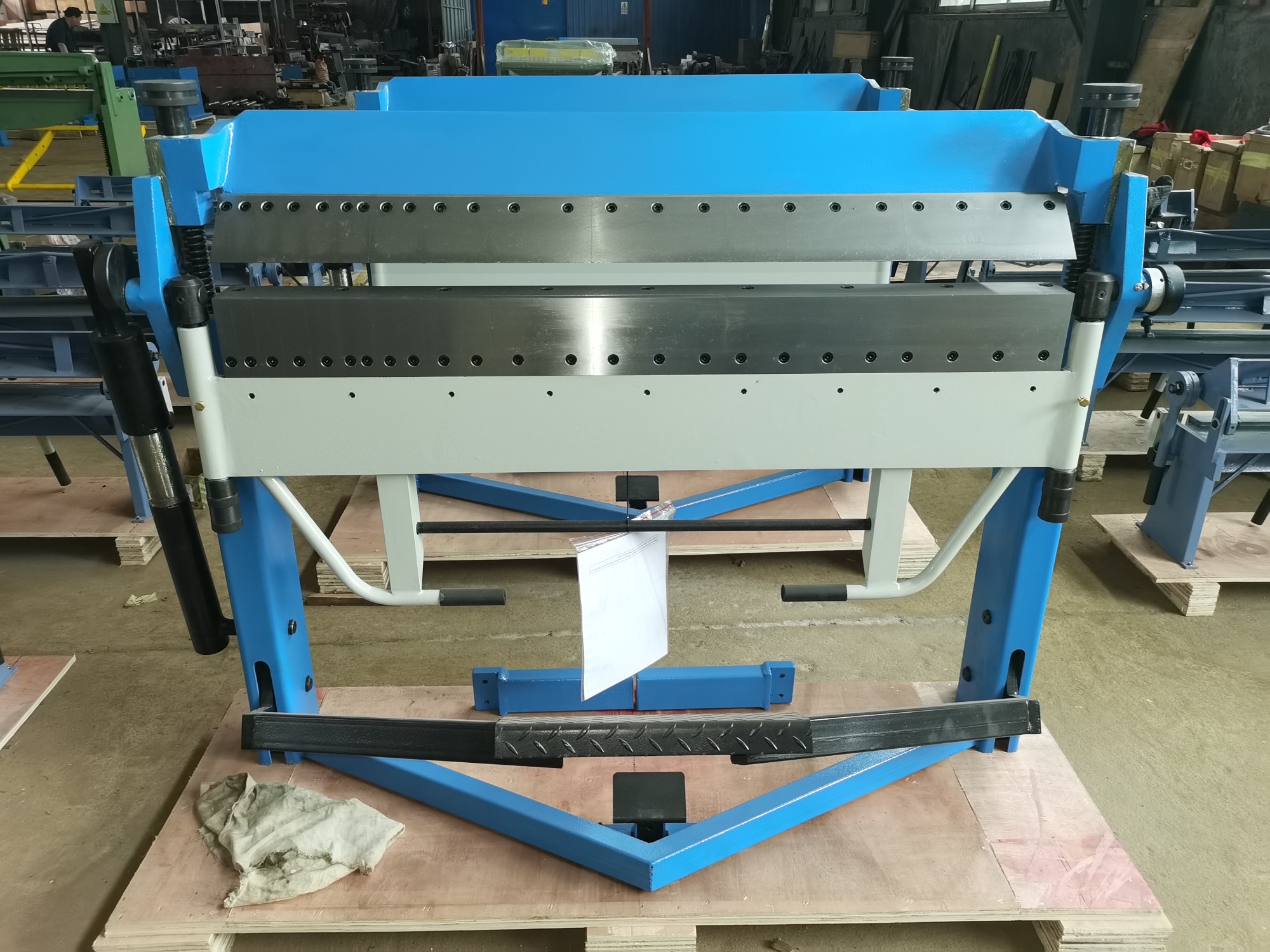

PBB1270/2A Folding Machine

* With foot control.

* It is easy for operation and relax hands for adjusting the material.

* They have the function of air spring which can be installed inside the arm (optional).

* The press blade and folding blade are segment structure.

* Compression spring for top counterbalance.

* Cam lock and rebound spring for bending beam counterbalance.

* Bow handle for bending beam rotation

* Adjustable bending angle stop with scale up to 135°.

* Segmented top beam tools.

Features:

1. With foot control.

2. It is easy for operation and relax hands for adjusting the material.

3. They have the function of air spring which can be installed inside the arm (optional).

4. The press blade and folding blade are segment structure.

5. Compression spring for top counterbalance.

6. Cam lock and rebound spring for bending beam counterbalance.

7. Bow handle for bending beam rotation

8. Adjustable bending angle stop with scale up to 135°.

9. Segmented top beam tools.

Specification:

Model	PBB1020/2A	PBB1270/2A	PBB1520/1.5A
Max. working length	1020 mm	1270 mm	1520 mm
Max. sheet thickness	2.0 mm	2.0 mm	1.5 mm
Max. clamping bar lift	47 mm	47 mm	47 mm
Folding angle	0-135°	0-135°	0-135°
Packing size	146x64x131 cm	171x71x131 cm	196x71x130 cm
N.W. / G.W.	325/390 kg	370/450 kg	395/466 kg
