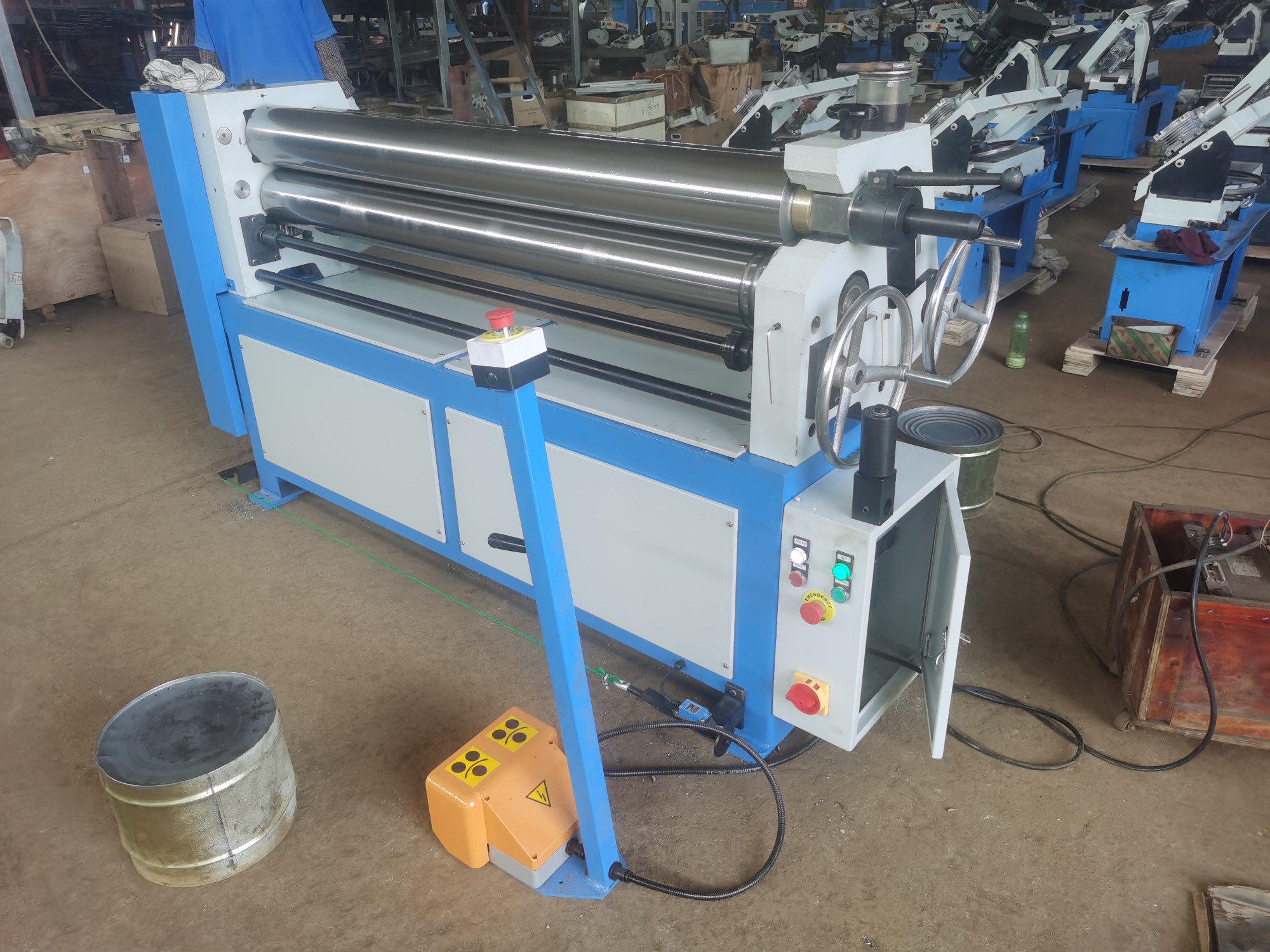

ESR-1300x2.5 slip roll machine

* Asymmetrical roll bending machine with 3 high strength steel rolls

* Fixed top roller, adjustable lower and rear rollers

* Standard series wire core groove

* Top roll swing out across cam lock

* Supplied with conical bending feature

Features:

1.Asymmetrical roll bending machine with 3 high strength steel rolls

2.Fixed top roller, adjustable lower and rear rollers

3.Standard series wire core groove

4.Top roll swing out across cam lock

5.Supplied with conical bending feature

Specification:

Model	ESR-1300X2.5
Max.rolling thickness(mm)	2.5
Max.rolling width(mm)	1300
Dia.of roller(mm)	90
Min. rolling Dia. (mm)	100
Roller speed(rpm)	8.8(50Hz)/10.8(60 Hz)
Motor power(kw)	1.5
Packing size	200x72x120cm
N.W./G.W.	540/600kg
